The model can be purchased from https://www.cozmicscalemodels.com/shop

INSTRUCTIONS ARE IN PDF FILE (ENGLISH). A LINK TO THE INSTRUCTIONS CAN BE FOUND IN THE INVOICE.

THIS IS FOR THE LIGHTING KIT ONLY.  MODEL IS NOT INCLUDED.

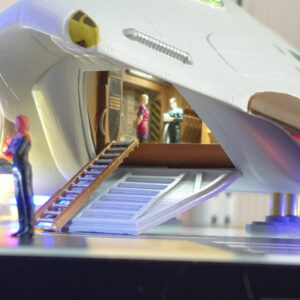

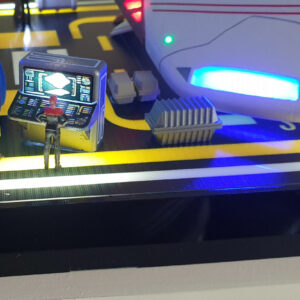

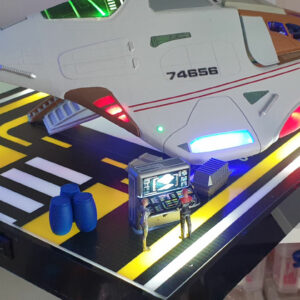

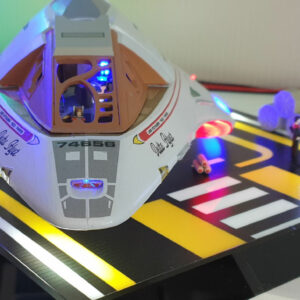

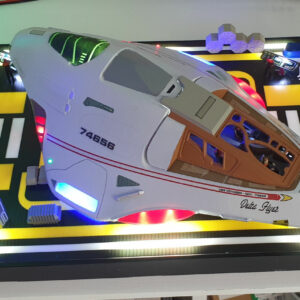

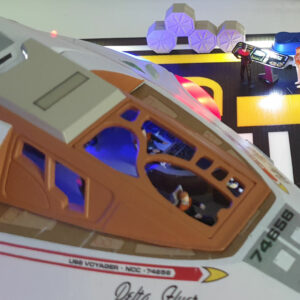

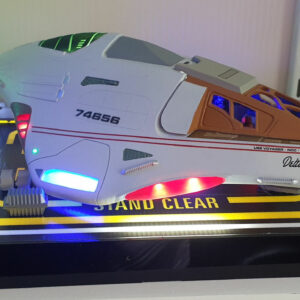

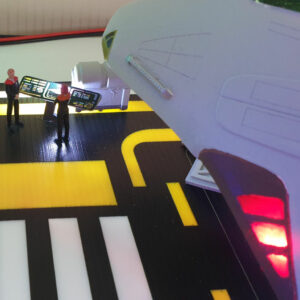

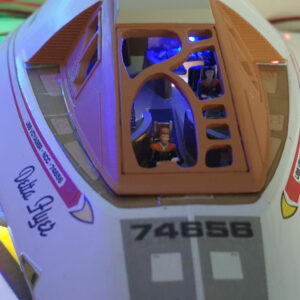

The pictures are of finished kit using this lighting kit.

PLEASE MAKE SURE YOU READ THE DESCRIPTION SO YOU KNOW WHAT YOU ARE BUYING AS I DO NOT ACCEPT CANCELLATIONS

Contents:
7 x White SMD’s.

1 x Blue SMD.

2 x Green SMD’s.

1 x White 3mm LED.

7 x Red 3mm LED’s

4 x Green 3mm LED’s

1 x Blue 3mm LED.

1 x 3 LED Strip White (50mm long).

5 x 3 LED Strips White (25mm long).

2 x 6 LED Strips White (25mm long).

2 x 3 LED Strips Blue (25mm long).

13 x 470R Resistors.

1 1K Resistor.

1 x Fade Circuit Board Kit.

1 x 12v Female DC connector (for mains power).

Cable x 3 Colours. (colours may vary)

2 x JST Sockets.

Shrink Tube.

Plastic Strip.

This lighting kit requires some knowledge of soldering as it is in kit form.
I will not be held responsible for errors made in wiring of the model (but If you are unsure get in touch and I will help as best as I can or use the net for help).

Notes: The item is only suitable for indoor use.
Choking hazard – small parts. Not suitable for children under 3 .
Do not look directly into the LEDs, it could damage the retina.
Instructions and pictures are my property and may not be published.
