INSTRUCTIONS ARE IN PDF FILE (ENGLISH). A LINK TO THE INSTRUCTIONS CAN BE FOUND IN THE INVOICE.

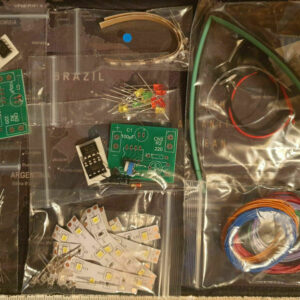

CONTENTS:

6 x 3mm White LED’s.

1 x 3mm White  Flashing LED.

2 x 2mm White LED’s.

1 x 5mm Blue LED.

1 x 3mm Blue LED.

3 x 3mm Red LED’s.

2 x 1.8mm Red LED’s.

2 x 3mm Green LED’s.

4 x 3mm Yellow LED’s.

10 x 3 LED White Strips 50mm.

9 x 3 LED White Strips 25mm.

2 x 12 LED Blue Strips 25mm.

9 x 470 ohm Resistors.

4 x 100 ohm Resistors.

1 x Female DC Connector.

6 x Various colours of cable.

1 x Double Flash Circuit Board Kit.

1 x Terminal Block.

Fibre Optic.

Please be aware this lighting kit requires some skills and knowledge of soldering as it is in kit form. That includes any circuit boards.  But the instructions do tell you how they go together.
I will not be held responsible for errors made in wiring of the model (but If you are unsure get in touch and I will help as best as I can or use the net for help).

PLEASE MAKE SURE YOU READ THE DESCRIPTION SO YOU KNOW WHAT YOU ARE BUYING AS I DO NOT ACCEPT CANCELLATIONS

This lighting kit requires some skills and knowledge of electronics and soldering.

I will not be held responsible for errors made in wiring of the model (but If you are unsure get in touch and I will help as best as I can or use the net for help).

Notes: The item is only suitable for indoor use.
Choking hazard – small parts. Not suitable for children under 3 .
Do not look directly into the LEDs, it could damage the retina.
Instructions and pictures are my property and may not be published.
