INSTRUCTIONS ARE IN PDF FILE (ENGLISH). A LINK TO THE INSTRUCTIONS CAN BE FOUND IN THE INVOICE.

Please be aware this lighting kit requires some skills and knowledge of soldering as it is in kit form. That includes any circuit boards.  But the instructions do tell you how they go together.
I will not be held responsible for errors made in wiring of the model (but If you are unsure get in touch and I will help as best as I can or use the net for help).

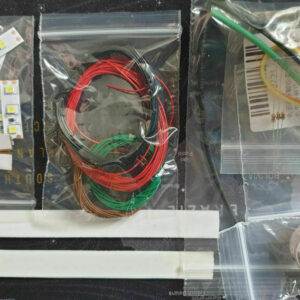

KIT CONTENTS:

3 x 2mm White DIP LED’s.

4 x 3mm White LED’s.

1 x 15  LED White Strip 25mm.

1 x 3 LED White Strip 25mm.

7 x 3 LED White Strips 50mm.

2 x 15 LED Blue Strips 25mm.

2 x 470 ohm Resistors.

1 x Female DC Connector.

2 x Plastic Strips 135mm x 10mm.

1 Flashing circuit Board Kit.

1 x JST Plug Male/Female.

4 x Various colours of Cable.

1mm Diameter Fibre Optic.

1.5mm Diameter Fibre Optic.

1mm Shrink Tube.

2mm Shrink Tube.

PLEASE MAKE SURE YOU READ THE DESCRIPTION SO YOU KNOW WHAT YOU ARE BUYING AS I DO NOT ACCEPT CANCELLATIONS

Notes: The item is only suitable for indoor use.
Choking hazard – small parts. Not suitable for children under 3 .
Do not look directly into the LEDs, it could damage the retina.
Instructions and pictures are my property and may not be published.
