INSTRUCTIONS ARE IN PDF FILE (ENGLISH). A LINK TO THE INSTRUCTIONS CAN BE FOUND IN THE INVOICE.

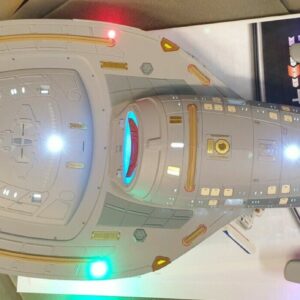

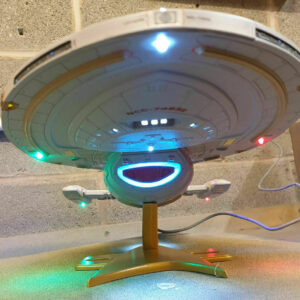

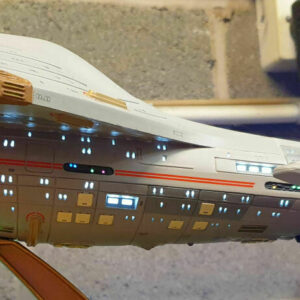

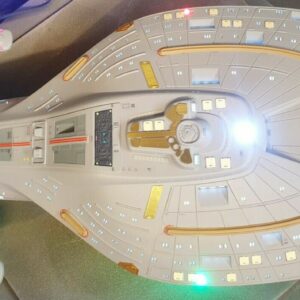

PICTURES ARE OF A MODEL MADE WITH THIS KIT,

Please be aware this lighting kit requires some skills and knowledge of soldering as it is in kit form. That includes any circuit boards. But the instructions do tell you how they go together.
I will not be held responsible for errors made in wiring of the model (but If you are unsure get in touch and I will help as best as I can or use the net for help).

PLEASE MAKE SURE YOU READ THE DESCRIPTION SO YOU KNOW WHAT YOU ARE BUYING AS I DO NOT ACCEPT CANCELLATIONS

Contents of lighting kit:
7 x Red LED’s 3mm.

2 x Red LED’s 5mm.

5 x Green LED’s 3mm.

1 x White SMD.

5 x White LED’s 3mm.

2 x 3 LED Strips White (50mm long).

2 x 6 LED Strips White (50mm long).

4 x 9 LED Strips White (50mm long)

2 x 3 LED Strip White (25mm long).

2 x 12 LED strips Blue (25mm long).

14 x 470ohm Resistors.

1 Variable Flasher Circuit Kit.

0.75mm Diameter Fibre Optic.

1 x JST plug Male/Female.

4 x colour Cable. (Red, Black, Orange and Purple)

1 x female jack for 9-12V DC. (mains not supplied but recommended).

1 x Terminal Block.

This lighting kit requires some skills and knowledge of electronics and soldering as it is in kit form.
I will not be held responsible for errors made in wiring of the model (but If you are unsure get in touch and I will help as best as I can or use the net for help).

Notes: The item is only suitable for indoor use.
Choking hazard – small parts. Not suitable for children under 3 .
Do not look directly into the LEDs, it could damage the retina.
Instructions and pictures are my property and may not be published.
