INSTRUCTIONS ARE IN PDF FILE (ENGLISH). A LINK TO THE INSTRUCTIONS CAN BE FOUND IN THE INVOICE.

THIS LIGHTING KIT IS FOR THE SEAVIEW MODEL ONLY AND NOT THE FLYING SUB.

THE SEAVIEW MODEL IS NOT INCLUDED.

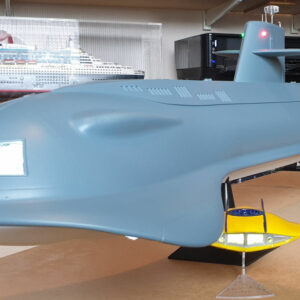

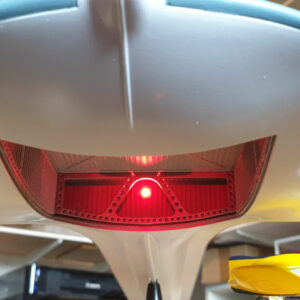

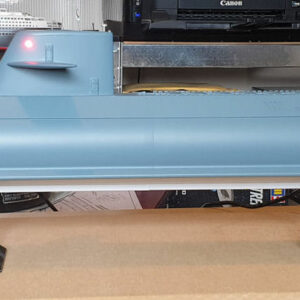

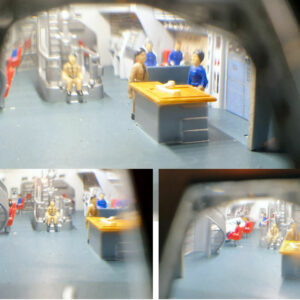

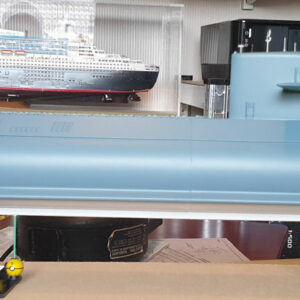

pictures are of finished kit.

PLEASE MAKE SURE YOU READ THE DESCRIPTION SO YOU KNOW WHAT YOU ARE BUYING AS I DO NOT ACCEPT CANCELLATIONS

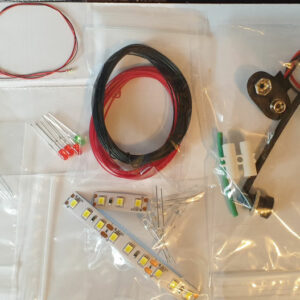

Contents:
6 x 3mm White LED’S.
1 x SMD LED.
3 x 3mm Red LED’S.
1 x 3mm Green LED.
1 x 9 LED strips White (25mm long).
1 x 3 LED strip White (25mm long).
6 x 470ohm Resistors.
4 x 47ohm Resistors.
1 x 12v Female DC connector (for mains power).
1 X 9v Battery Connector.
1 x Terminal Block.
Cable x 2 Colours.
Plastic Strip.

This lighting kit requires some knowledge of soldering as it is in kit form.
I will not be held responsible for errors made in wiring of the model (but If you are unsure get in touch and I will help as best as I can or use the net for help).

Notes: The item is only suitable for indoor use.
Choking hazard – small parts. Not suitable for children under 3 .
Do not look directly into the LEDs, it could damage the retina.
Instructions and pictures are my property and may not be published.
