INSTRUCTIONS ARE IN PDF FILE (ENGLISH). A LINK TO THE INSTRUCTIONS CAN BE FOUND IN THE INVOICE.

Please be aware this lighting kit requires some skills and knowledge of soldering as it is in kit form. That includes any circuit boards.  But the instructions do tell you how they go together.
I will not be held responsible for errors made in wiring of the model (but If you are unsure get in touch and I will help as best as I can or use the net for help).

PLEASE MAKE SURE YOU READ THE DESCRIPTION SO YOU KNOW WHAT YOU ARE BUYING AS I DO NOT ACCEPT CANCELLATIONS

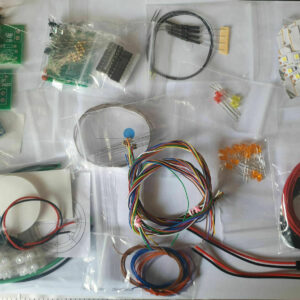

Contents:

4 x White SMD’s

2 x 1.8mm White LED’s.

4 x 3mm White LED’s.

3 x 5mm White LED’s.

2 x 3mm Yellow LED’s.

2 x 3mm Red LED’s.

16 x 3mm Tri-Colour LED’s.

12 x 3 LED White Strips 50mm long.

10 x 3 LED White Strips 25mm long.

2 x 12 LED Blue Strips

9 x 470ohm Resistors

Various lengths and colours of Cable

2 x Plastic Discs and Templates.

1 x Bussard Circuit Board Kit.

1 x Variable Circuit Board Kit.

1 x Simple Flash Circuit Board Kit.

2 x Plastic Strips 8mm x 90mm.

1 x  Plastic Strip 35mm x 70mm.

2 x Terminal Blocks.

1 x JST Plug Male/Female.

1 x Female DC Connector.

This lighting kit requires some skills and knowledge of electronics and soldering as it is in kit form.

I will not be held responsible for errors made in wiring of the model (but If you are unsure get in touch and I will help as best as I can or use the net for help).

Notes: The item is only suitable for indoor use.
Choking hazard – small parts. Not suitable for children under 3 .
Do not look directly into the LEDs, it could damage the retina.
Instructions and pictures are my property and may not be published.
